The Checkpoint+ SL 5 is an electric gravel bike featuring a TQ HPR60 motor, 360 Wh battery, OCLV Carbon frame, and 12-speed Shimano GRX 1x shifting.
The Checkpoint+ SL 5 is an electric gravel bike featuring a TQ HPR60 motor, 360 Wh battery, OCLV Carbon frame, and 12-speed Shimano GRX 1x shifting.
Trek

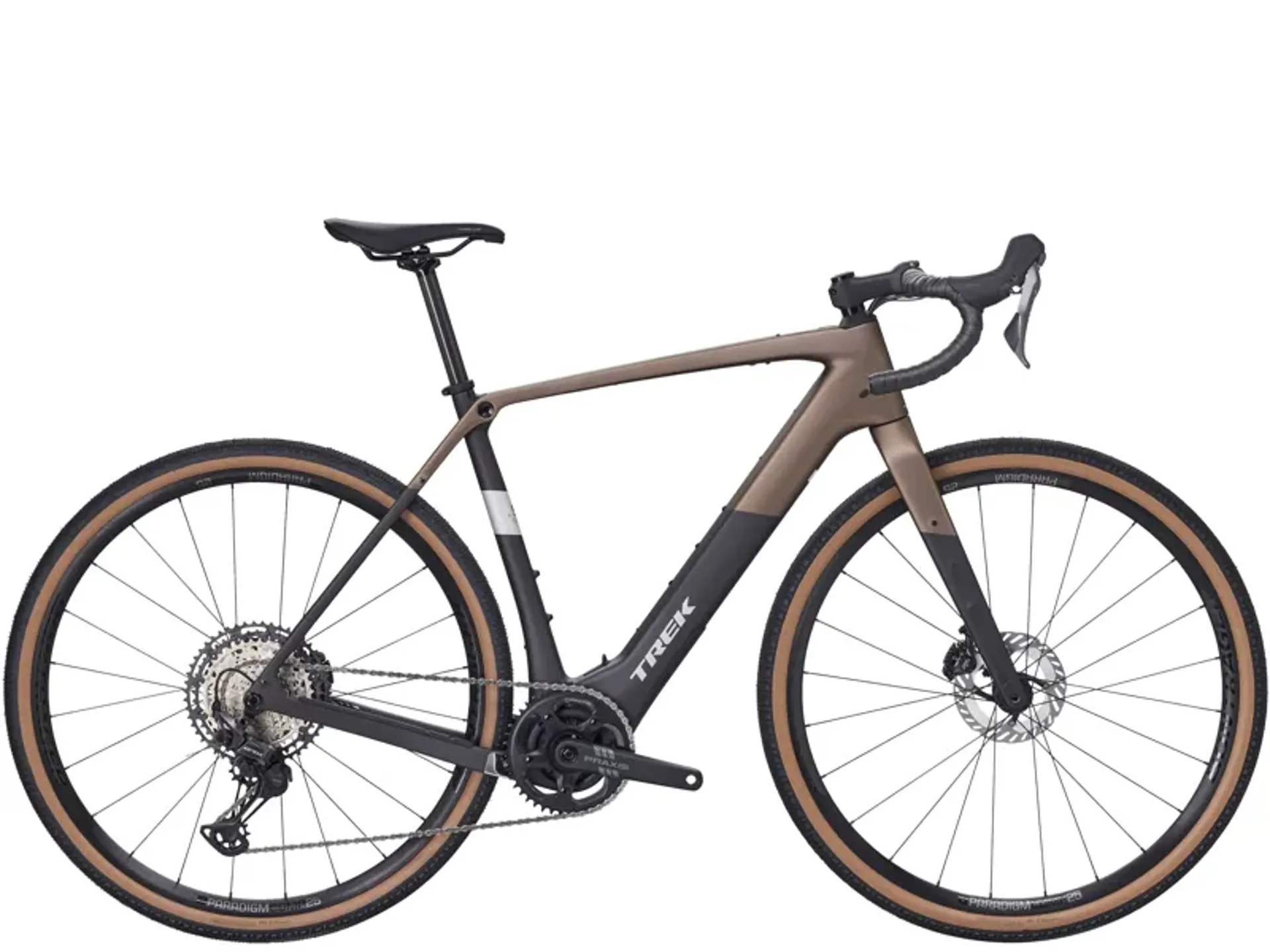

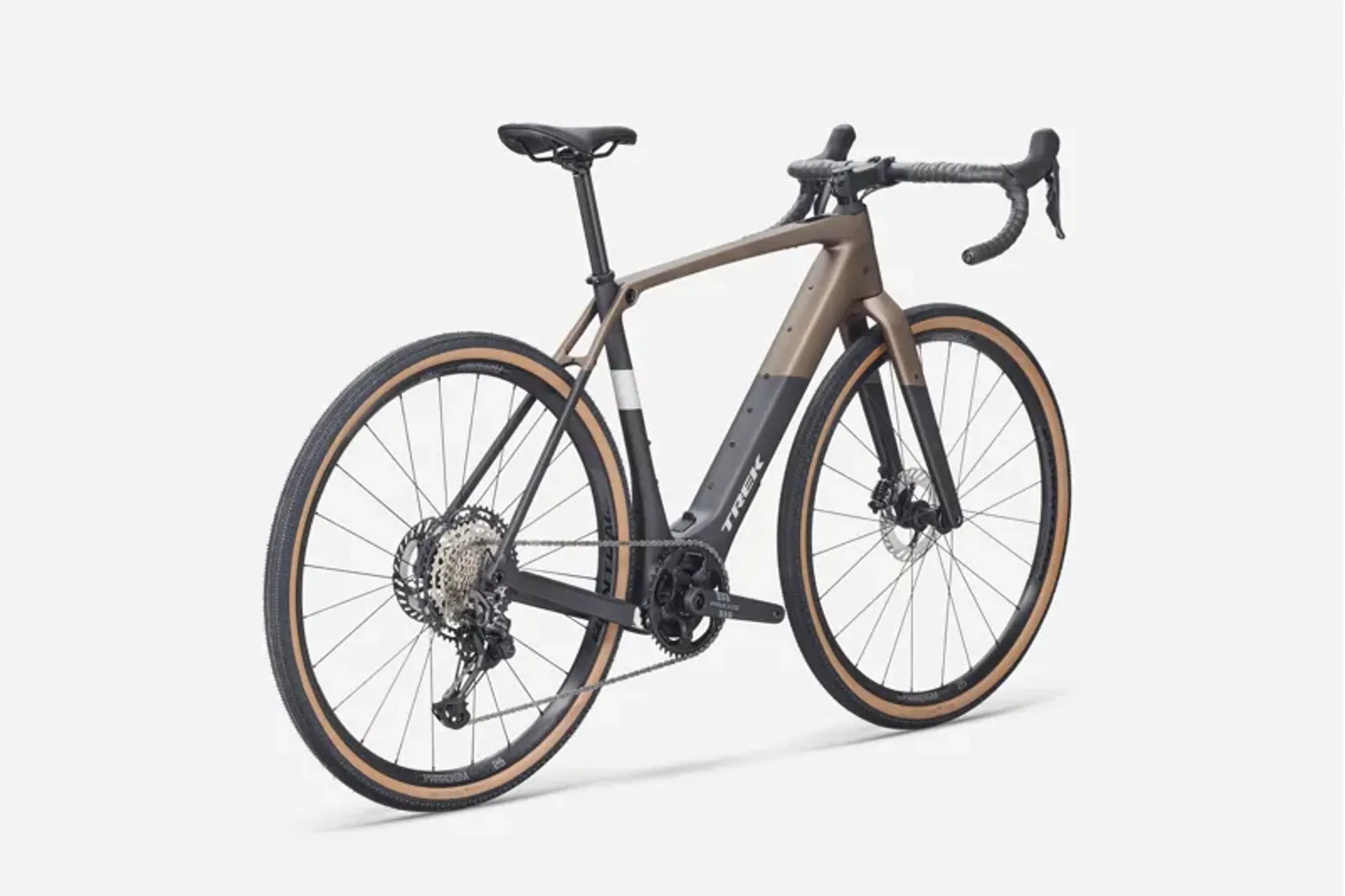

Trek Checkpoint+ SL 5 E-Gravel Bike In Matte Bronze Age/Dark Web

£4,500.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Returns from Gateway Cycles

Returns

In the unlikely event that you are dissatisfied with your purchase from our website,please feel free to return your goods within 14 days of the purchase date for a full exchange or refund. Any item (excluding food and underwear) can be returned to us for any reason provided it is returned in ‘showroom condition’, with its original packaging, tags and a valid receipt/delivery note.

It is your responsibility to ensure that the item is returned to us in a safe and secure manner, and in the event of a refund or exchange, in saleable condition (in original packaging and including all warranty, cards, manuals and accessories).

Customers are accountable for return shipping charges.

Return Items by Post

  1. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.
  2. Send your package using a recorded delivery method (always keep a copy of your receipt!) to the following address:

Gateway Cycles
5-9 Brecon Road
Abergavenny
Monmouthshire
NP7 5UH

Wrong size or you don't like the item?

If returning items that are not suitable for either refund or exchange you are accountable for the delivery cost in returning it to us. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

New faulty items/ Wrong Item Received

If you have received items that are faulty or not what you ordered send them back to us (using the steps above) and we will cover the delivery cost of the return if it is within 30 days of delivery. If we have supplied the correct product, it is not faulty or it is outside of the 30 days we can not be liable for your postage charges. You should always keep proof of postage and we advise you to use a ‘signed for service’ when returning goods.

In the event that you have received items that are faulty or not what you ordered, please send them back to us as soon as possible. Only in these cases will we cover the cost of the return shipping charges.We will refund within the cost of the item and postage within the 30 days if the item is returned within 30 days .

Faulty Items

If you have received items that are faulty please send them back to us using the steps above. Please include a covering letter describing the fault and if you would like the item replacing or refunding. Once the item arrives back at our Mail Order Centre you will receive an email notifying you about the progress. Faulty items are then forwarded onto the suppliers to confirm the warranty issue. Please be patient with us as we need to receive this confirmation from the suppliers before we can process your request for a replacement/refund.

When returning the item please use Royal Mail1stClass Recorded* so that you have a tracking reference just in case! If your item arrived faulty we will refund your postage cost. If the item was in full working order at the time of delivery to you, we can not refund your return postage cost.

*In the event that you return a faulty/incorrect item we will refund your postage charge as long as it is 1stClass Recorded or a lesser value service. We do not refund premium services.

Refunds

Refunds will be processed using the same method of payment used for the original purchase. Credit and debit card refunds must be made to the card used for the original transaction,chequepayments will be refunded in cash but due to banking restrictions can only be refunded at least 14 days after the original purchase date. Due to the high incidence of fraud we regret that we are unable to offer any refund without a valid receipt/delivery note.

Refunds will be made for faulty or incorrect items, including any delivery charge incurred by the buyer (excluding ‘Special Delivery’) in the return of the item. If the products you ordered are delivered to you in good condition but you wish to return them for any reason we will refund the full value of the goods excluding any carriage charge upon receipt of your returned goods.

Items won’t be considered lost until after 15 working days of items beingdispatched. Once the 15 working days are up we will issue a refund or replacement.

Not received your order?

If you have not received your order please call us on 01873 858519 and a member of staff can confirm the shipping date. Unfortunately we cannot consider an item to be lost until 15 working days has passed (according to Royal Mail procedure). Once the 15 working days have passed we will be able to issue a full refund or resend your order.

Trek Checkpoint+ SL 5 E-Gravel Bike In Matte Bronze Age/Dark Web

Season:2026

Brand:Trek

Code:57446MATBNZAGEWEB

The Checkpoint+ SL 5 is an electric gravel bike built to take you the distance, featuring an OCLV Carbon frame and endurance geometry for comfortable long-haul riding.

This bike includes a TQ HPR60 motor with a smooth and quiet boost and a 360 Wh battery that keeps going on your biggest rides. It comes ready to roll with durable alloy wheels and 12-speed Shimano GRX 1x shifting.

The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It is ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 25 kph (18 mph) with 80 km (50 miles) of range (in Eco mode). You can choose how much boost you get and when you get it with three assist modes.

Explore even further with an optional 160 Wh Range Extender that fits neatly in your bottle cage and gives you an extra 44% more range.

IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger for longer. Confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures.

The Trek Central app seamlessly connects to your Checkpoint+ for real-time range calculations, activity tracking, and custom motor tuning. Plus, navigation and mapping features help you stay on course wherever you ride.

Shimano GRX was designed from the ground up for gravel adventure, featuring gravel-specific ergonomics, optimised gearing options, rugged reliability, and a quiet, stable drivetrain.

Features:

  • Room for tyres of up to 50 mm wide (as measured).
  • Mounts on the frame and fork for front and rear racks, mudguards, and Adventure Frame and Triangle Bags.
  • Designed to fit extra hydration in addition to all your bags.
  • Compatible with a suspension fork (up to 40 mm travel) and a dropper post.
Technical Information
  • Frame
    500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle
  • Fork

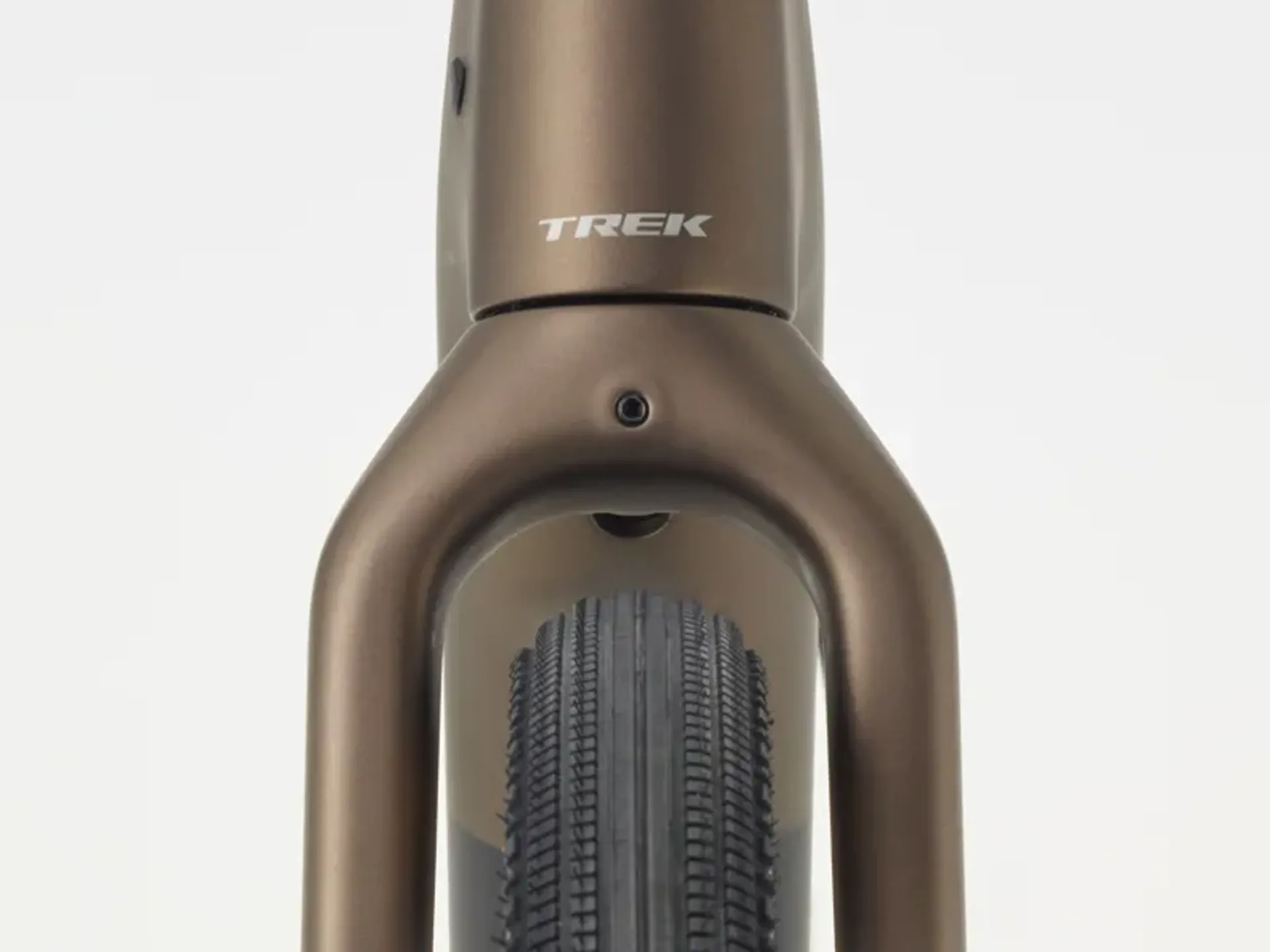

    Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
  • Weight
    ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Battery
    TQ 360Wh
  • Charger
    TQ 4A charger
  • Computer
    TQ LED display with Bluetooth & ANT+ connectivity
  • Motor

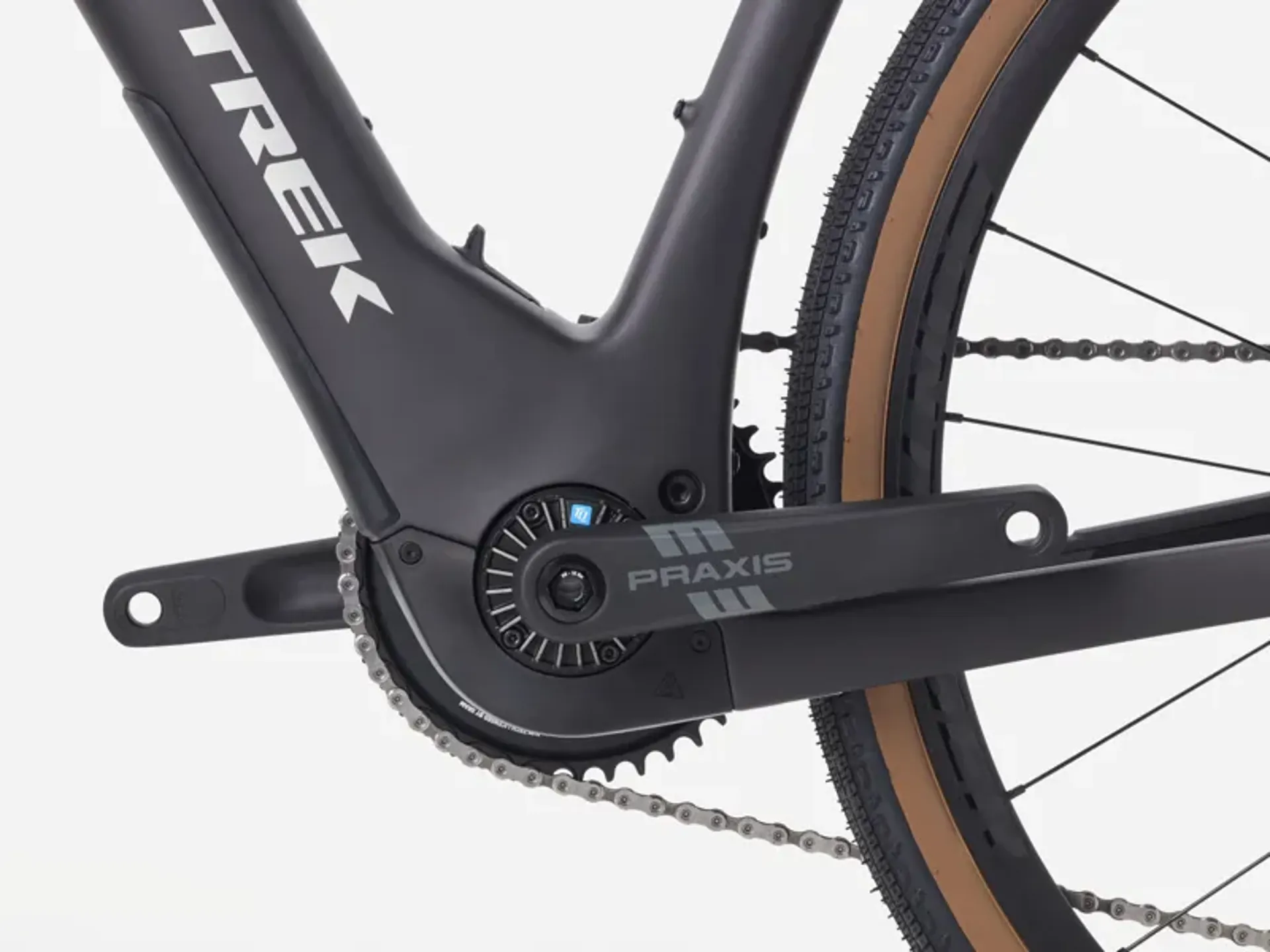

    TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
  • E-bike classification
    Class 1
  • Shifter
    Shimano GRX RX820, 12-speed
  • Rear derailleur
    Shimano GRX RX822, 51T max cog
  • Crank
    Size: XS, S: Praxis Alloy, 165 mm length; Size: M, ML: Praxis Alloy, 170 mm length; Size: L, XL: Praxis Alloy, 172.5 mm length
  • Cassette
    Shimano XT M8200, 10-51, 12-speed
  • Chain
    Shimano XT M8100, 12-speed
  • Max. chainring size
    1x: 44T
  • Wheel front
    Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
  • Skewer front
    Bontrager Switch chamfered thru axle
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tyre
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Tyre part
    Bontrager TLR sealant, 180 ml/6 oz
  • Max tyre size
    50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
  • Saddle
    Verse Short Comp, steel rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
  • Handlebar

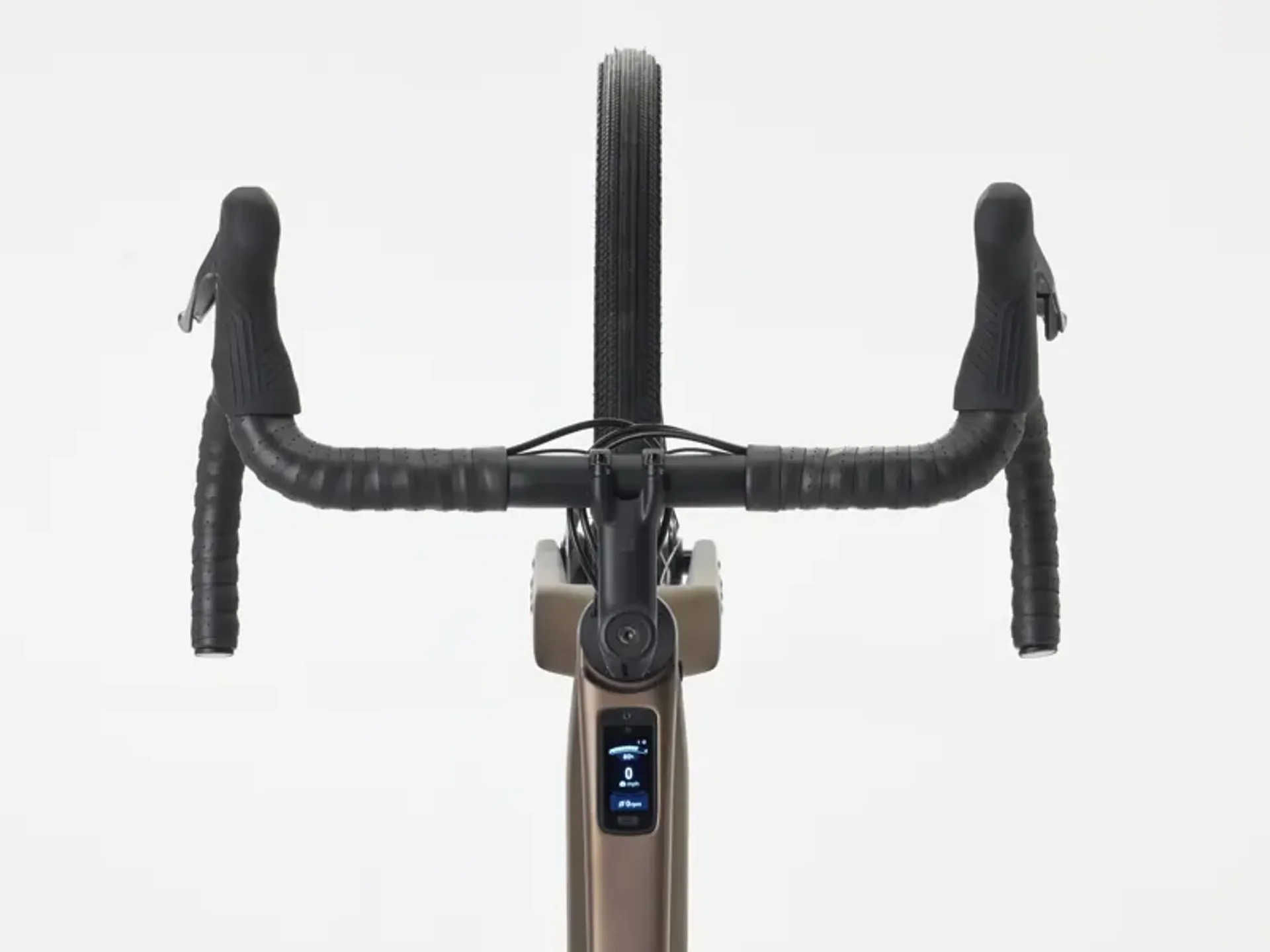

    Size: XS, S: Bontrager Elite Gravel, alloy, 40 cm width; Size: M, ML: Bontrager Elite Gravel, alloy, 42 cm width; Size: L: Bontrager Elite Gravel, alloy, 44 cm width; Size: XL: Bontrager Elite Gravel, alloy, 46 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size: XS: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length; Size: S, M: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; Size: ML, L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length; Size: XL: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
  • Brake rotor
    Shimano CL800, CentreLock, 160 mm
  • Brake lever
    Shimano GRX RX820, 12-speed
  • Rotor size
    Max brake rotor sizes: 180 mm front and rear
